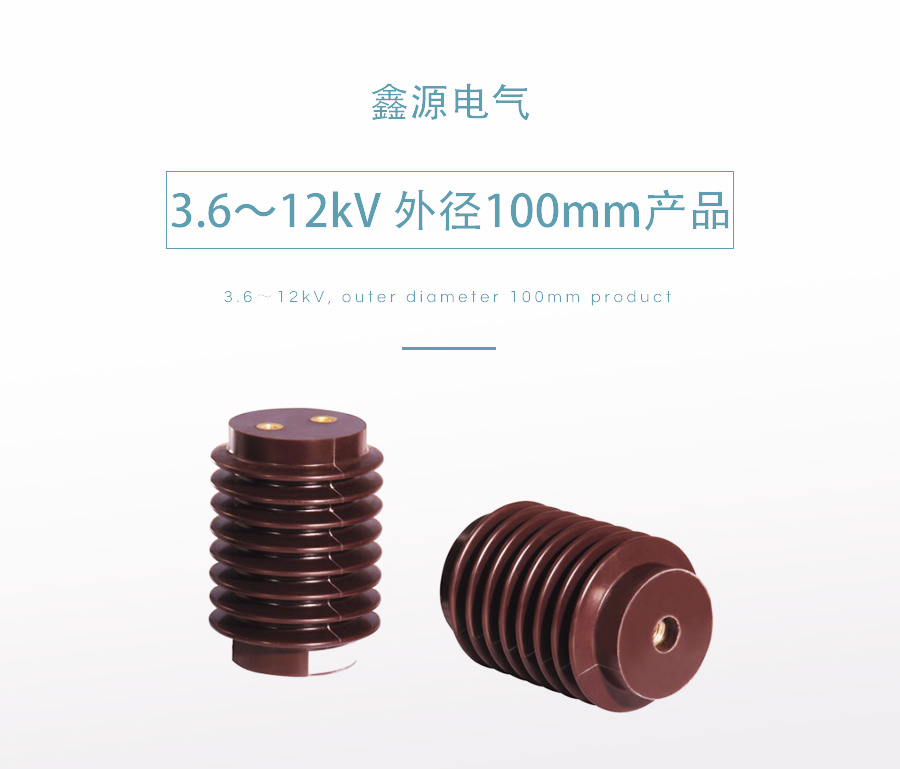

3.6～12kV 外徑100mm產品
產品分類 :
關鍵詞 :
3.6～12kV 外徑100mm產品
hiddenValue
產品介紹
|

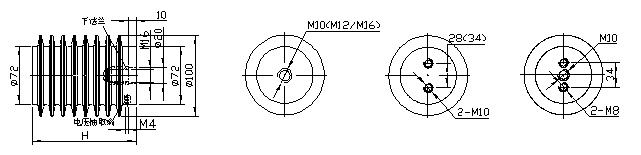

外形及安裝法蘭孔圖示 |
| 選型表 |
|
訂貨 |
型號規格 |
額定電壓 |
外形高度H |
爬電距離 |
上法蘭規格 |
下 |
備注 |
|||
|
A |
B (Z) |
總數 |
||||||||
|
中心螺孔 |
旁孔孔徑 |
孔距 |
||||||||
|
Z-512 |
ZN6-12/125A1- M12- M16-φ100 |
12 |
125 |
271 |
M12 |
／ |
／ |
1 |
M16 |
|
|
Z-52 |
ZN6-12/130B2- M10*28- M16-φ100 |
12 |
130 |
276 |
／ |
M10 |
28 |
2 |
M16 |
|
|
Z-53 |
ZN6-12/130A1- M12- M16-φ100 |
12 |
130 |
276 |
M12 |
／ |
／ |
1 |
M16 |
|
|
Z-54 |
ZN6-12-130A20- M16- M20-φ100 |
12 |
130 |
276 |
M16 |
／ |
／ |
1 |
M20 |
|
|
Z-55 |
ZN6-12/130B5- M10*36- M16-φ100 |
12 |
130 |
276 |
／ |
M10 |
36 |
2 |
M16 |
|
|
Z-56 |
ZN6-12/130B2- M10*28- M16-φ100 |
12 |
130 |
276 |
／ |
M10 |
28 |
2 |
M16 |
|
|
Z-57 |
ZN6-12/140A1- M12- M16-φ100 |
12 |
140 |
286 |
M12 |
／ |
／ |
1 |
M16 |
|
|
Z-58 |
ZN6-12/140A2- M16- M16-φ100 |
12 |
140 |
286 |
M16 |
／ |
／ |
1 |
M16 |
|
|
Z-59 |
ZN6-12/140A31- M12- M12-φ100 |
12 |
140 |
286 |
M12 |
／ |
／ |
1 |
M12 |
|
|
Z-60 |
ZN6-12/140A20-M16- M20-φ100 |
12 |
140 |
286 |
M16 |
／ |
／ |
1 |
M20 |
|
|
Z-61 |
ZN6-12/140B2- M10*28- M16-φ100 |
12 |
140 |
286 |
／ |
M10 |
28 |
2 |
M16 |
|
|
Z-62 |
ZN6-12/140B5- M10*36- M16-φ100 |
12 |
140 |
286 |
／ |
M10 |
36 |
2 |
M16 |
|
|
Z-63 |
ZN6-12/140AB-M12(M10*40)- M16-φ100 |
12 |
140 |
286 |
M12 |
M10 |
40 |
3 |
M16 |
|
|
Z-64 |
ZN6-12/140AB5-M16(M10*36)- M16-φ100 |
12 |
140 |
286 |
M16 |
M10 |
36 |
3 |
M16 |
|
|
Z-65 |
ZN6-12/140AB12-M12(12*36)- M16-φ100 |
12 |
140 |
286 |
M12 |
M12 |
36 |
3 |
M16 |
|
|
Z-66 |
ZN6-12/145A1- M12- M16-φ100 |
12 |
145 |
291 |
M12 |
／ |
／ |
1 |
M16 |
|
|
Z-67 |
ZN6-12/145A2- M16-M16-φ100 |
12 |
145 |
291 |
M16 |
／ |
／ |
1 |
M16 |
|
|
Z-68 |
ZN6-12/145B2- M10*28- M16-φ100 |
12 |
145 |
291 |
／ |
M10 |
28 |
2 |
M16 |
|
|
Z-69 |
ZN6-12/145B5-M10*36- M16-φ100 |
12 |
145 |
291 |
／ |
M10 |
36 |
2 |
M16 |
|
|
Z-70 |
ZN6-12/145AB5-M16(M10*36)- M16-φ100 |
12 |
145 |
291 |
M16 |
M10 |
36 |
3 |
M16 |
|
|
Z-71 |
ZN6-12/145AB-M10(M10*36)- M16-φ100 |
12 |
145 |
291 |
M10 |
M10 |
36 |
3 |
M16 |
|
|
Z-72 |
ZG6-12/150B- M8 *36 - M16-φ100 |
12 |
150 |
296 |
／ |
M8 |
36 |
2 |
M16 |
|
|
Z-73 |
ZN6-12/150AB-M12(M10*36)- M16-φ100 |
12 |
150 |
296 |
M12 |
M10 |
36 |
3 |
M16 |
|
|
Z-74 |
ZN6-12/150AB-M12(M10*40)- M16-φ100 |
12 |
150 |
296 |
M12 |
M10 |
40 |
3 |
M16 |
|
|
Z-75 |
ZN6-12/150B1- M10*24- M16-φ100 |
12 |
150 |
296 |
／ |
M10 |
24 |
2 |
M16 |
|
|
Z-76
|
ZN6-12/150Z1- M8*28- M8*40- M16-φ100 |
12 |
150 |
296 |
／ |
M8 |
28 |
2 |
M16 |
|
|
M8 |
40 |
2 |
|
|
||||||
|
Z-77 |
ZN6-12/160A2- M16- M16-φ100 |
12 |
160 |
301 |
M16 |
／ |
／ |
1 |
M16 |
|
|
Z-78 |
DXN-12/160B2- M10*28- M16-φ100 |
12 |
160 |
301 |
／ |
M10 |
28 |
2 |
M16 |
|
|
Z-79 |
ZN6-12/160B5-M10*36- M16-φ100 |
12 |
160 |
301 |
／ |
M10 |
36 |
2 |
M16 |
|
